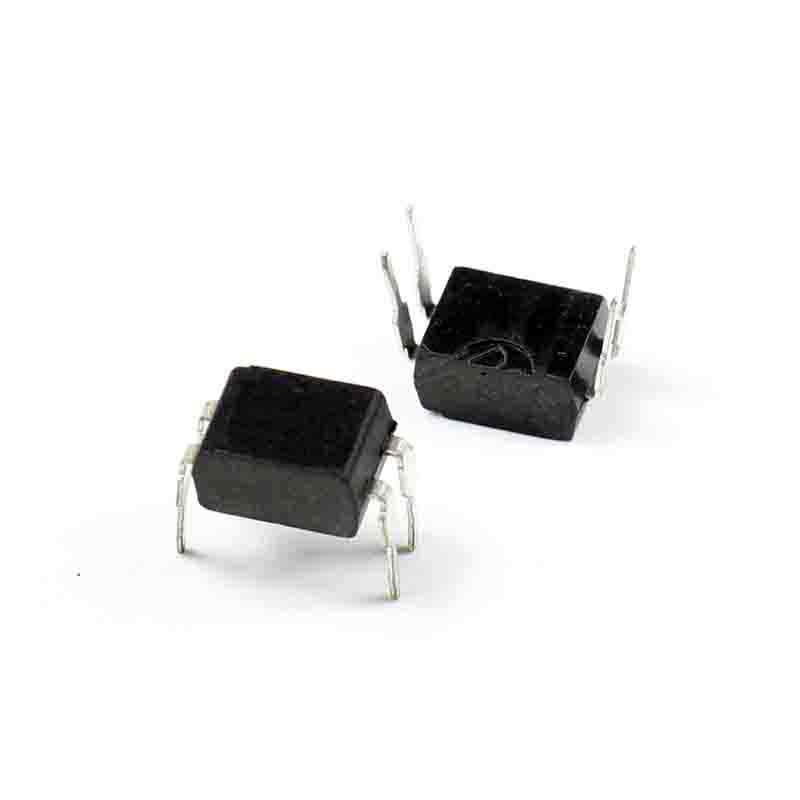

TLP626(BV) 4-DIP (0.300", 7.62mm) PHOTOCOUPLER TRANS-OUT 4-DIP

Brand: Toshiba

Product Code: #698543

Availability:In stock

$3.08 3.08

Qty

Ask about this product
TLP626(BV) DescriptionTLP626(BV) Datasheet
Number of Channels 1
Input Type AC DC
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 200% @ 1mA
Current Transfer Ratio (Max) 1200% @ 1mA
Voltage - Output 55V
Current - Output / Channel 60mA
Current - DC Forward (If) 60mA
Vce Saturation (Max) 400mV
Output Type Transistor
Mounting Type Through Hole
