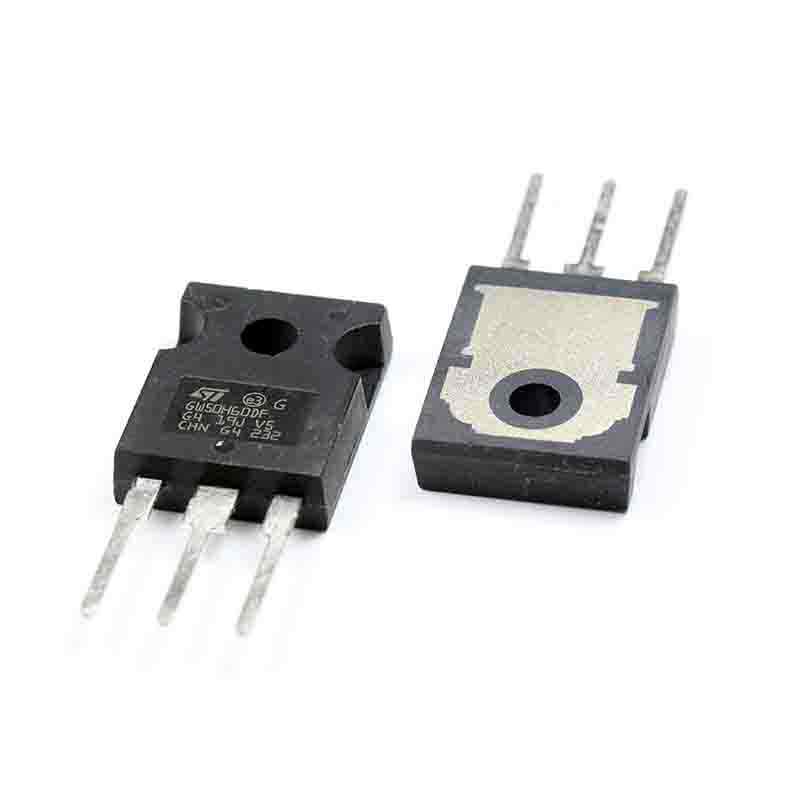

STGW50H60DF TO-247 IGBT 600V 100A 360W TO247

Availability:In stock

$7.03

STGW50H60DF Description Datasheet
IGBT Type	Trench and Field Stop
Voltage - Collector Emitter Breakdown (Max)	600V
Vce(on) (Max) @ Vge Ic	1.8V @ 15V 50A
Current - Collector (Ic) (Max)	100A
Current - Collector Pulsed (Icm)	200A
Power - Max	360W
Switching Energy	1.75mJ
Input Type	Standard
Gate Charge	217nC
Td (on/off) @ 25C	62ns/178ns
Test Condition	400V 50A 10 Ohm 15V
Reverse Recovery Time (trr)	55ns
Mounting Type	Through Hole
Supplier Device Package	TO-247
