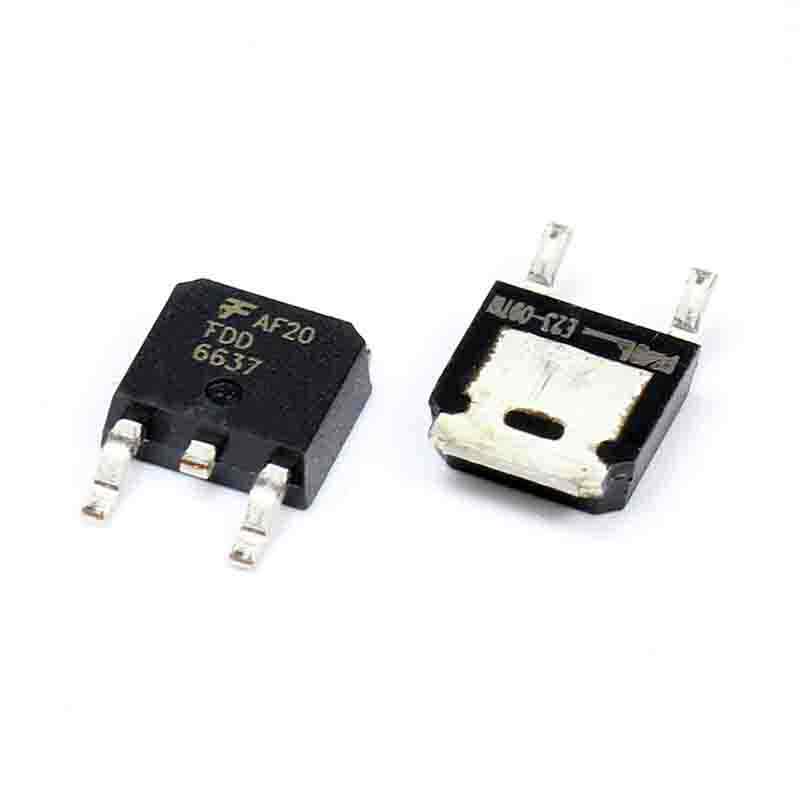

FDD6637 TO-252 MOSFET P-CH 35V 13A DPAK

Brand: Fairchild Semiconductor

Product Code: #508806

Availability:In stock

$1.61 1.61

Qty

Ask about this product
FDD6637 DescriptionFDD6637 Datasheet
FET Type MOSFET P-Channel Metal Oxide
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 35V
Current - Continuous Drain (Id) @ 25 C 13A
Rds On (Max) @ Id Vgs 11.6 mOhm @ 14A 10V
Vgs(th) (Max) @ Id 3V @ 250?A
Gate Charge (Qg) @ Vgs 63nC @ 10V
Input Capacitance (Ciss) @ Vds 2370pF @ 20V
Power - Max 1.3W
Mounting Type Surface Mount
Supplier Device Package TO-252
