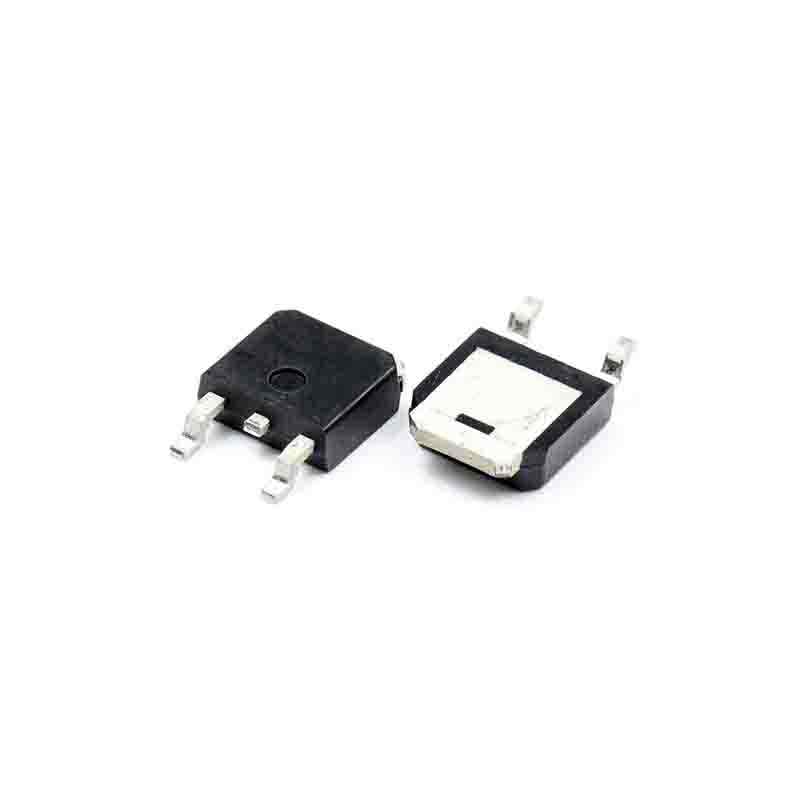

FDD8874 D-Pak MOSFET N-CH 30V 116A D-PAK

Brand: Fairchild Semiconductor

Product Code: #849860

Availability:In stock

$2.16 2.16

Qty

Ask about this product
FDD8874 DescriptionFDD8874 Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25 C 116A
Rds On (Max) @ Id Vgs 5.1 mOhm @ 35A 10V
Vgs(th) (Max) @ Id 2.5V @ 250?A
Gate Charge (Qg) @ Vgs 72nC @ 10V
Input Capacitance (Ciss) @ Vds 2990pF @ 15V
Power - Max 110W
Mounting Type Surface Mount
Supplier Device Package D-Pak
