IPA093N06N3 G PG-TO220-3-31 Full Pack MOSFET N-CH 60V 43A TO220-3-31

Brand: Infineon Technologies

Product Code: #660780

Availability:In stock

$3.36 3.36

Qty

Ask about this product
IPA093N06N3 G DescriptionIPA093N06N3 G Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 60V
Current - Continuous Drain (Id) @ 25 C 43A
Rds On (Max) @ Id Vgs 9.3 mOhm @ 40A 10V
Vgs(th) (Max) @ Id 4V @ 34?A
Gate Charge (Qg) @ Vgs 48nC @ 10V
Input Capacitance (Ciss) @ Vds 3900pF @ 30V
Power - Max 33W
Mounting Type Through Hole

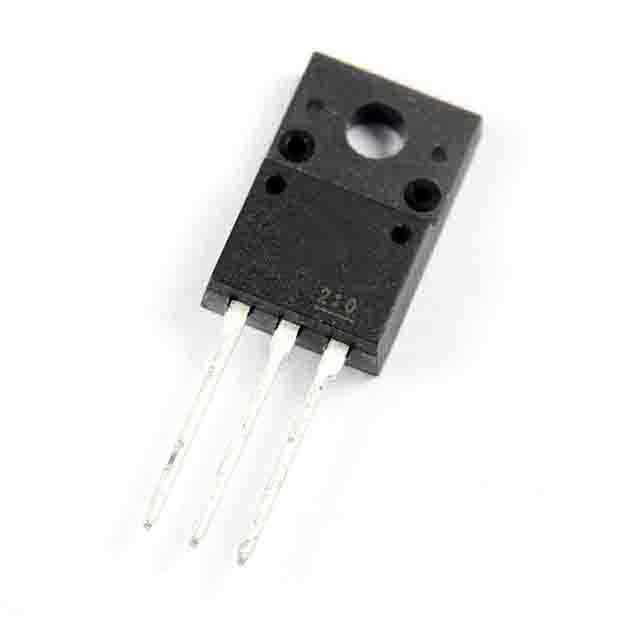

Supplier Device Package PG-TO220-3-31 Full Pack
