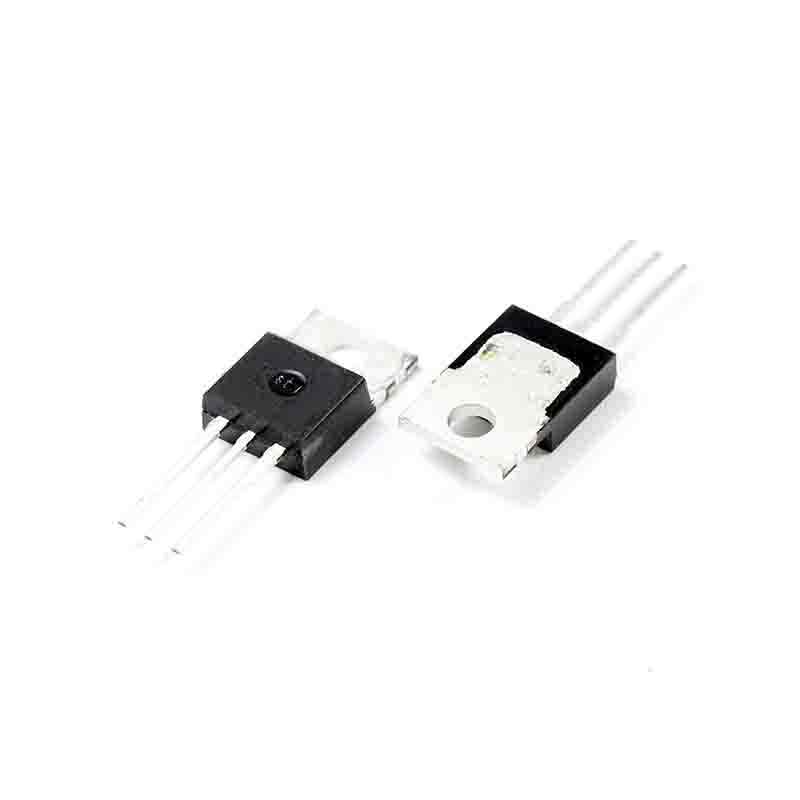

IPP50N10S3L-16 PG-TO220-3 MOSFET N-CH 100V 50A TO220-3

Brand: Infineon Technologies

Product Code: #660444

Availability:In stock

$3.04 3.04

Qty

Ask about this product
IPP50N10S3L-16 DescriptionIPP50N10S3L-16 Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 100V
Current - Continuous Drain (Id) @ 25 C 50A
Rds On (Max) @ Id Vgs 15.7 mOhm @ 50A 10V
Vgs(th) (Max) @ Id 2.4V @ 60?A
Gate Charge (Qg) @ Vgs 64nC @ 10V
Input Capacitance (Ciss) @ Vds 4180pF @ 25V
Power - Max 100W
Mounting Type Through Hole
Supplier Device Package PG-TO220-3
