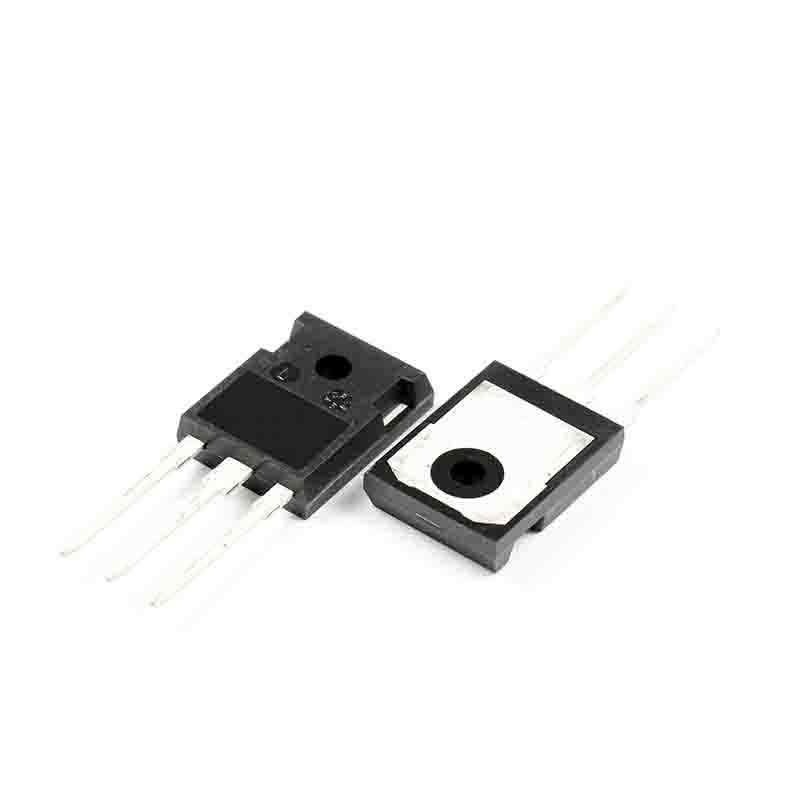

IXFH30N50P TO-247AD MOSFET N-CH 500V 30A TO-247AD

Brand: IXYS

Product Code: #600239

Availability:In stock

$7.50 7.50

Qty

Ask about this product
IXFH30N50P DescriptionIXFH30N50P Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 500V
Current - Continuous Drain (Id) @ 25 C 30A
Rds On (Max) @ Id Vgs 200 mOhm @ 15A 10V
Vgs(th) (Max) @ Id 5V @ 4mA
Gate Charge (Qg) @ Vgs 70nC @ 10V
Input Capacitance (Ciss) @ Vds 4150pF @ 25V
Power - Max 460W
Mounting Type Through Hole
Supplier Device Package TO-247AD
