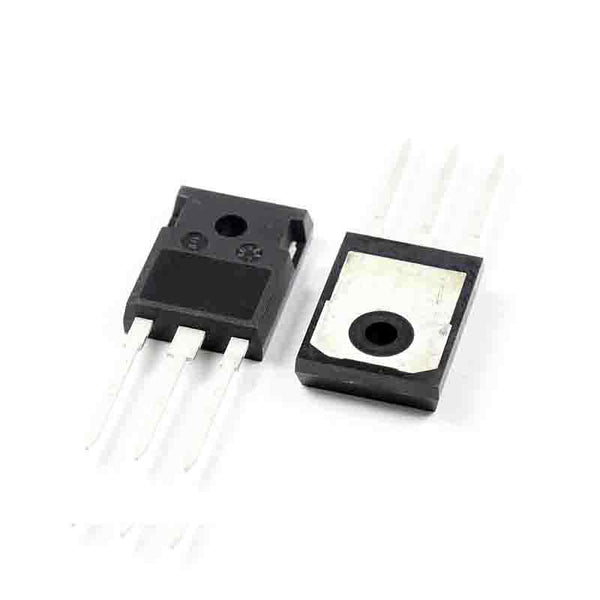

IXTH88N30P TO-247 MOSFET N-CH 300V 88A TO-247

Brand: IXYS

Product Code: #600267

Availability:In stock

$11.34 11.34

Qty

Ask about this product
IXTH88N30P DescriptionIXTH88N30P Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 300V
Current - Continuous Drain (Id) @ 25 C 88A
Rds On (Max) @ Id Vgs 40 mOhm @ 44A 10V
Vgs(th) (Max) @ Id 5V @ 250?A
Gate Charge (Qg) @ Vgs 180nC @ 10V
Input Capacitance (Ciss) @ Vds 6300pF @ 25V
Power - Max 600W
Mounting Type Through Hole
Supplier Device Package TO-247
