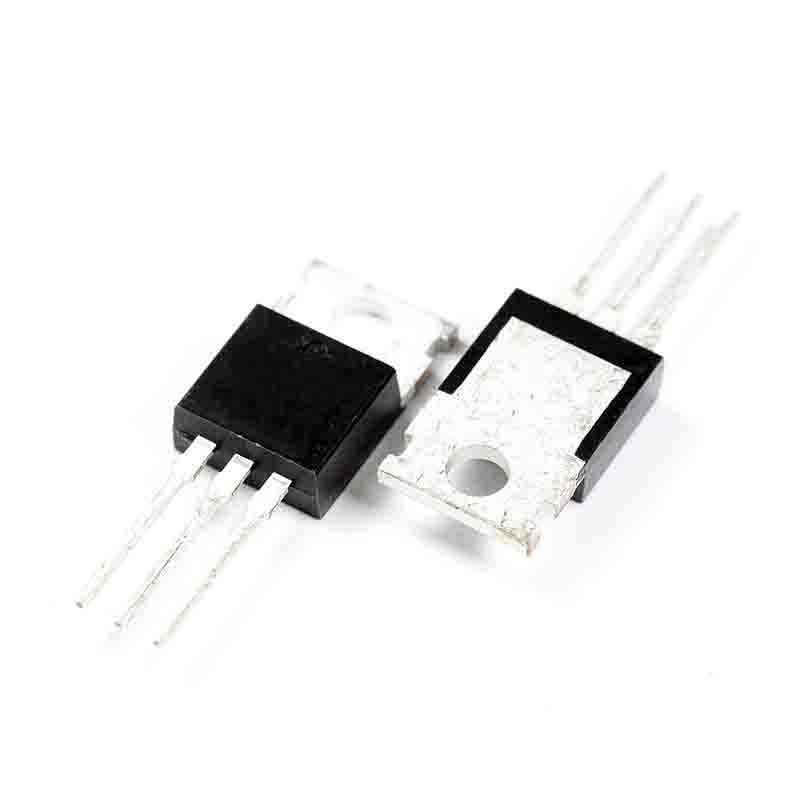

IXTP130N10T TO-220 MOSFET N-CH 100V 130A TO-220

Brand: IXYS

Product Code: #600093

Availability:In stock

$4.62 4.62

Qty

Ask about this product
IXTP130N10T DescriptionIXTP130N10T Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 100V
Current - Continuous Drain (Id) @ 25 C 130A
Rds On (Max) @ Id Vgs 9.1 mOhm @ 25A 10V
Vgs(th) (Max) @ Id 4.5V @ 250?A
Gate Charge (Qg) @ Vgs 104nC @ 10V
Input Capacitance (Ciss) @ Vds 5080pF @ 25V
Power - Max 360W
Mounting Type Through Hole
Supplier Device Package TO-220
