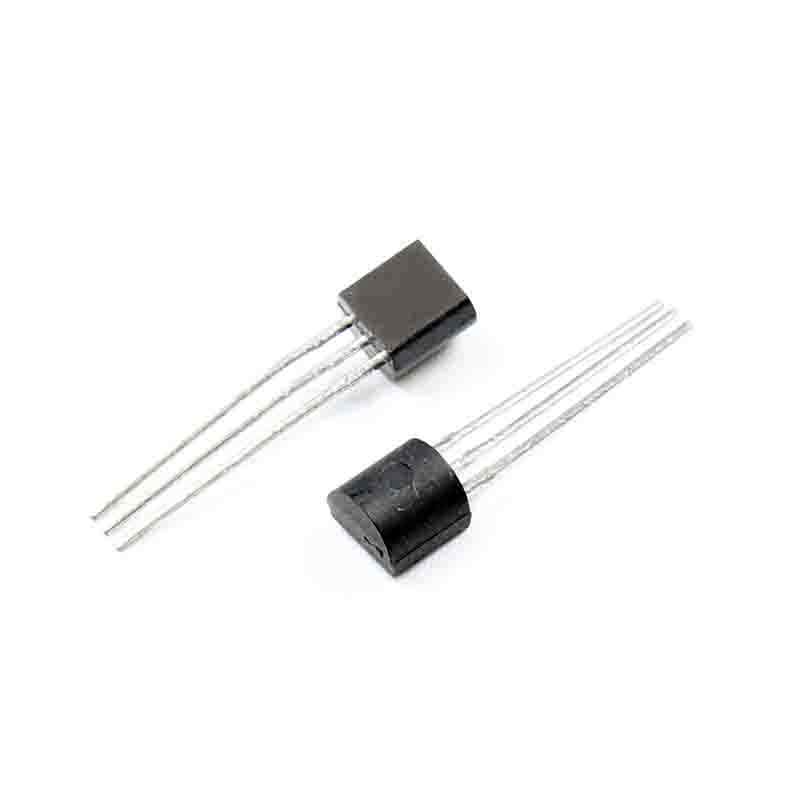

MPSA92,116 TO-92-3 TRANS PNP 300V 500MA SOT54

Brand: NXP Semiconductors

Product Code: #672331

Availability:In stock

$1.68 1.68

Qty

Ask about this product
MPSA92,116 DescriptionMPSA92,116 Datasheet
Transistor Type PNP
Current - Collector (Ic) (Max) 100mA
Voltage - Collector Emitter Breakdown (Max) 300V
Noise Figure (dB Typ @ f) -
Vce Saturation (Max) @ Ib Ic 500mV @ 2mA 20mA
Current - Collector Cutoff (Max) -
Gain -
DC Current Gain (hFE) (Min) @ Ic Vce 25 @ 30mA 10V
Power - Max 625mW
Frequency - Transition 50MHz
Mounting Type Through Hole
Supplier Device Package TO-92-3
