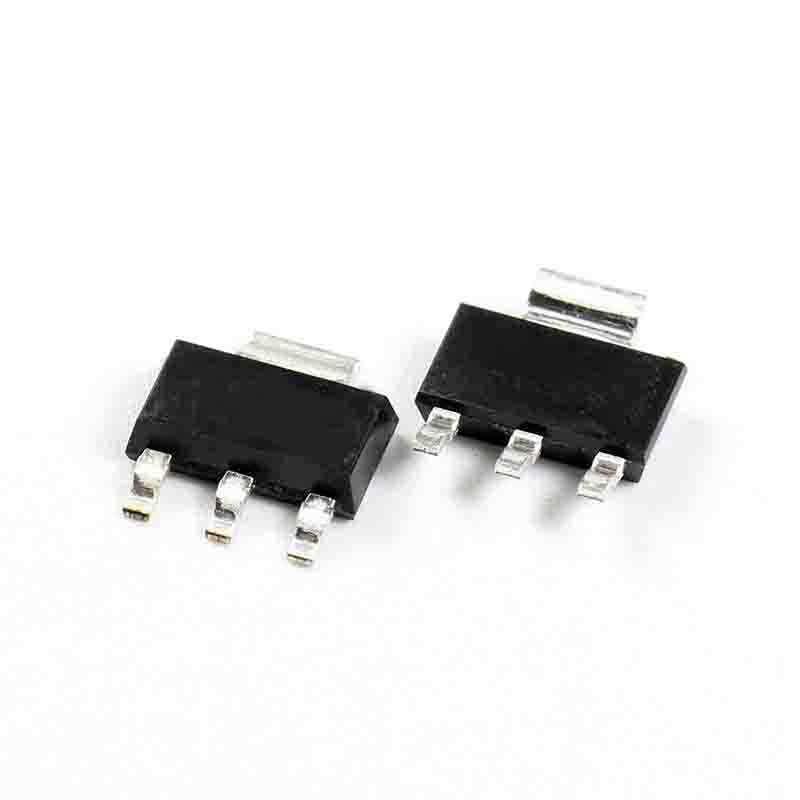

STN1NF20 SOT-223 MOSFET N-CH 200V 1A SOT-223

Brand: STMicroelectronics

Product Code: #658547

Availability:In stock

$1.31 1.31

Qty

Ask about this product
STN1NF20 DescriptionSTN1NF20 Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 200V
Current - Continuous Drain (Id) @ 25 C 1A
Rds On (Max) @ Id Vgs 1.5 Ohm @ 500mA 10V
Vgs(th) (Max) @ Id 4V @ 250?A
Gate Charge (Qg) @ Vgs 5.7nC @ 10V
Input Capacitance (Ciss) @ Vds 90pF @ 25V
Power - Max 2W
Mounting Type Surface Mount
Supplier Device Package SOT-223
